Automatic Sleeve Sealers with Heat Shrink Tunnel

I want to wrap my product for transportation purposes

An Automatic Sleeve Sealer is the ideal solution if you wish to wrap your products for transportation purposes. This inline high-speed machine is suitable for high volume production, benefitting from:

• Wrapping speeds up to 28 collations per minute / 1,680 per hour subject to pack size
• Modular construction of the infeed and outfeed belts
• High productivity and low maintenance
• PLC controlled with line integration available

Versatile Sleeve Sealer Machines

• Automatic Sleeve Sealer with Heat Shrink Tunnel Technical Data

  Our automatic sleevewrapper is robust and both easy to operate and maintain. Please review all technical data and call our sales team to further details:

  Machine Model	AS75 Sealer & HST75T2P Tunnel	AS95 Sealer & HST95T20 Tunnel
  Speed	12-28 Pack Per Minute / 720-1,680 Per Hour Maximum*	12-28 Packs Per Minute / 720-1,680 Per Hour Maximum*
  Sealing Dimension	No limit (l) x 650mm (w) x 400mm (h) (Product dependant)	No limit (l) x 850mm (w) x 400mm (h) (Product dependant)
  Film Type	Polyolefin 11-100 micron	Polyolefin 11-100 micron
  Maximum Film Reel Width	680mm	880 mm
  Safety	EN13849	EN13849
  Working Height	900mm + -45	900mm + -45
  Machine Weight	1050kg	1250kg
  Machine Dimensions	4675mm (l) x 1673mm (w) x 2020mm (h) (includes Heat Tunnel)	4675mm (l) x 1673mm (w) x 2020mm (h) (includes Heat Tunnel)
  Power Supply	400V 50Hz 3 Phase + Neutral	400V 50Hz 3 Phase + Neutral
  Max Power Consumption	27 kW	27 kW
  Working Pressure	6 Bar	6 Bar

  * Maximum for this range, output speed depends on pack size. Other range, speeds and pack size capabilities are available.

  Please download our Automatic Sleeve Wrapper brochure to view all technical data and machine specifications at your leisure.

  Download Machine Brochure

  Automatic Sleeve Sealer brochure

What type of products are wrapped on the AS75 / AS95 Sleeve Sealers?

Our versatile sleeve wrapping machines are built to wrap a range of products, mainly for transportation and distribution purposes, including:

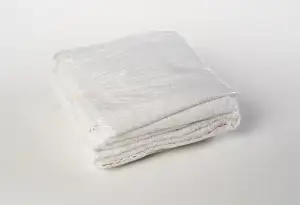

• Laundered products – workwear, towels etc.
• Household products – spray, wood framed objects etc.

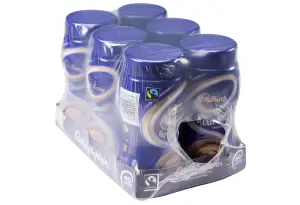

• Food & Drink collations – confectionery, tea etc.
• Building products – timber, paint pots etc.
• Print & Paper – magazines, newspapers etc.

Call us today to discuss the automatic sleeve wrapper, your requirements, and how we can help you improve your shrink packaging efficiency 01202 870201

Options available for the AS & HST Series:

Small End Roller Conveyors, Film Perforation, Polyethylene Blades, Bespoke Safety Levels, Low Film Warning, Line Integration, Opposite Hand Controls, Product Collating, Film Run Out Warning, Closing Conveyor, Touch screen HMI, Machine Colour, Food Grade Increased IP rating, Sid Feed Left or Right, Side Feed with Stacker, Remote Height Adjust, Heated Seal Strip, Film Reservoir, Height Hunting, Product Clamp, Single Magazine Capability, Aerosol Safety Capability, Pack Cooler, End Finish Rollers, Quick Release Lint Filters, CO2 Injection for Tunnel.

Take a look at ME Shrinkwrap's semi-auto sleeve sealer as an alternative to the fully automated model.
